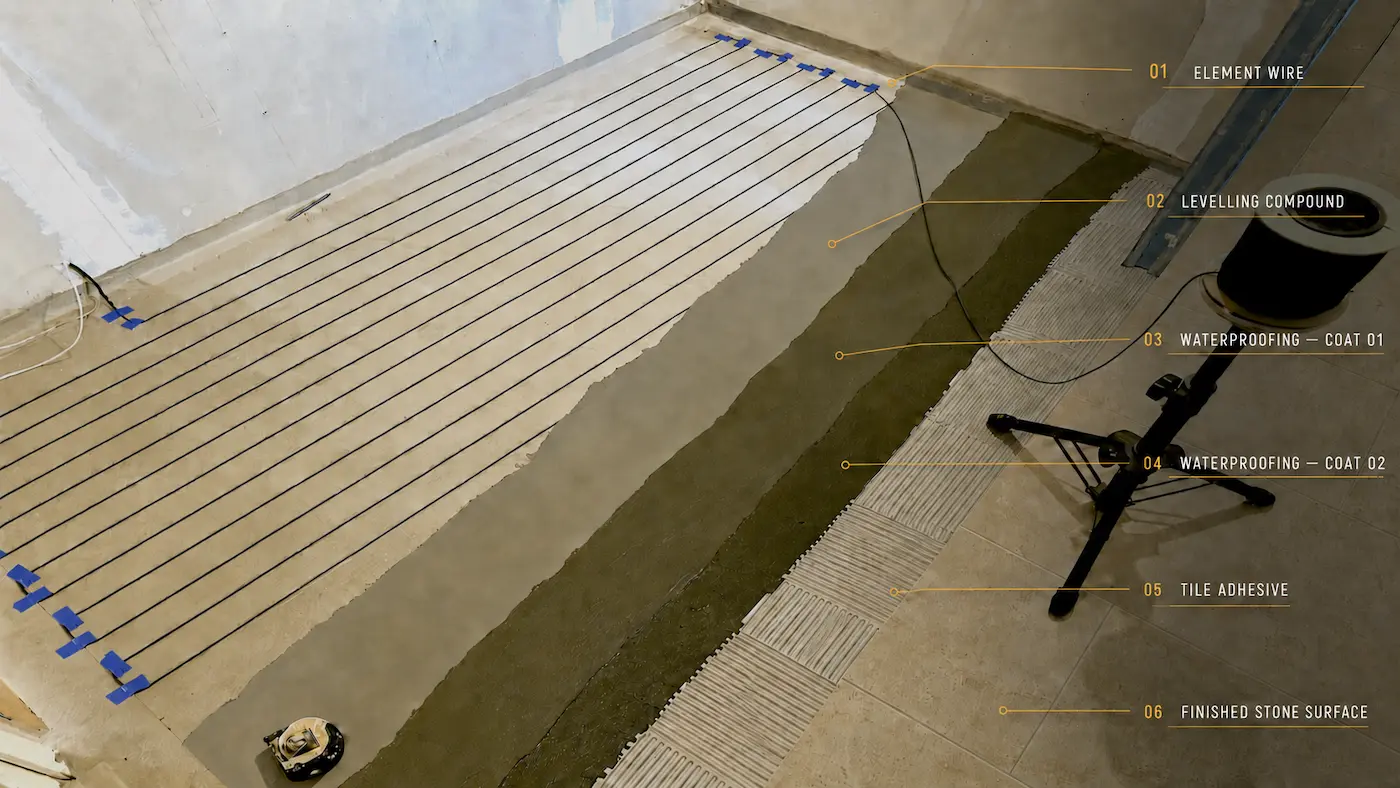

Integrated Under-Tile Heating

Heat becomes part of the tiled assembly.

The element generates the heat. That heat changes what everything above and below it must withstand.

Insulation

DIRECT THE HEAT UPWARD

Insulation beneath the element directs more heat upward, reducing heat loss and heat-up time. The insulation type determines how effectively it does this and how much height is added to the floor.

What this requires

Select the insulation by thermal resistance and thickness, then resolve the resulting floor height at doorways, thresholds and adjoining surfaces.

Greater heating efficiency must be balanced against the added cost and floor height.

Heated Wet Areas

Shower floor heating

Underfloor heating can continue through shower floors when correctly embedded within a waterproofing system capable of withstanding heat, moisture and movement.

What this requires

The encapsulated element continues through the shower floor within a waterproofing assembly specified for repeated thermal cycling.

Waterproofing must maintain its performance as the floor heats and cools.

Compatibility

WET-RATED ≠ HEAT-READY

Wet-area compliance alone does not establish suitability over heating. The membrane, adhesive and grout must each accommodate repeated thermal movement, or bonds and joints can fail.

What this requires

Adhesive, membrane and grout specified for the same heat profile as the heating element itself — not for the tile or wet area in isolation.

Passing the wet-area standard says nothing about passing the heat cycle.

Fault Isolation

LOCATE BEFORE LIFTING

Specialist fault-location can identify the damaged section, allowing controlled access and electrical repair without removing the entire tiled floor.

What this requires

Controlled tile removal and reinstatement of every disturbed layer.

Spare tiles should remain with the project.

Thermal Failure

Beyond the cable

• THE FINISH — Some natural stone and resin-agglomerated materials can deform under combined heat and moisture.

• THE SCREED — Premature heating can curl or crack the cementitious layers beneath.

• THE ASSEMBLY — Unresolved thermal movement can transfer stress into the tile, bond and joints.

What this requires

Material suitability, adhesive selection, movement provision and controlled commissioning resolved together.

Floor Levels

Flowing is not levelling

When encapsulating the heating cable, levelling compound can be controlled flat and level. Laser-levelling the compound is especially critical when laying mosaics that require precision.

What this requires

Datum points established before pouring, with compound depth controlled throughout placement.

The compound flows, but the laser guides.

0106

Integrated heating · controlled build-up · verified performance
